Compressor Manifold and Tube Assembly - 3.0L, 3.5L: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

NOTE: 3.0L shown, 3.5L similar.

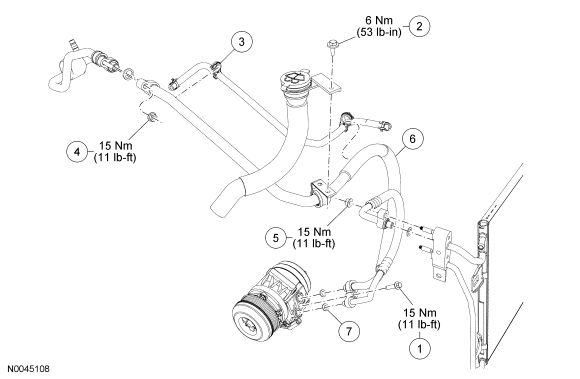

Fig 1: Exploded View Of Compressor Manifold & Tube Assembly With Torque Specifications - 3.0L, 3.5L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701625	Compressor manifold bolt
2	W505422	Washer reservoir filler neck bolt
3	-	Coolant reservoir hose retainer (2 required)
4	W520413	Compressor manifold and tube suction fitting nut
5	W520413	Condenser inlet fitting nut
6	19D734	Compressor manifold and tube assembly
7	19B596	Gasket seal (4 required)
