Air Conditioning (A/C) Compressor - 2.3L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

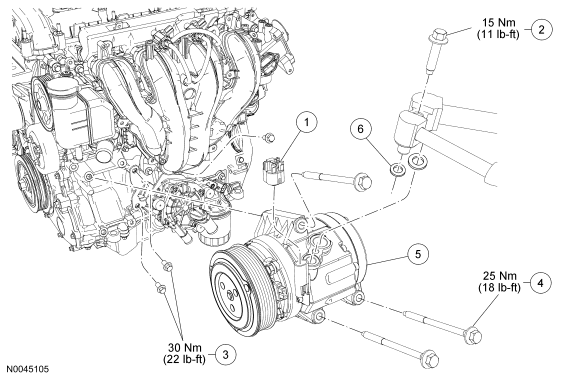

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Field coil electrical connector (part of 12B637) |
| 2 | W701625 | A/C compressor manifold bolt |
| 3 | W500032 | Secondary air injection pump bolts (3 required) |
| 4 | W710649 | A/C compressor bolt (3 required) |
| 5 | 19703 | A/C compressor |
| 6 | 19B596 | Gasket seal (2 required) |
