Seat Backrest - Rear: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

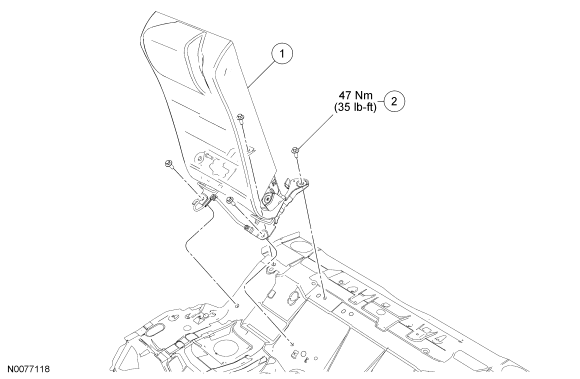

Fig 1: Exploded View Of Rear Seat Backrest With Torque Specification - 60 Percent

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest assembly
2	W707858	Backrest-to-floor bolt (4 required)

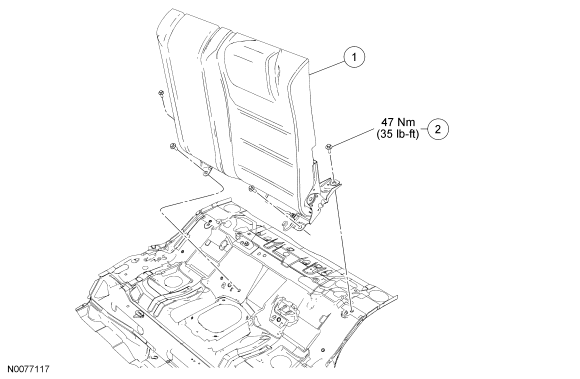

Fig 2: Exploded View Of Rear Seat Backrest With Torque Specification - 40 Percent

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest assembly
2	W707858	Backrest-to-floor bolt (4 required).
