Seat - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
NOTE:

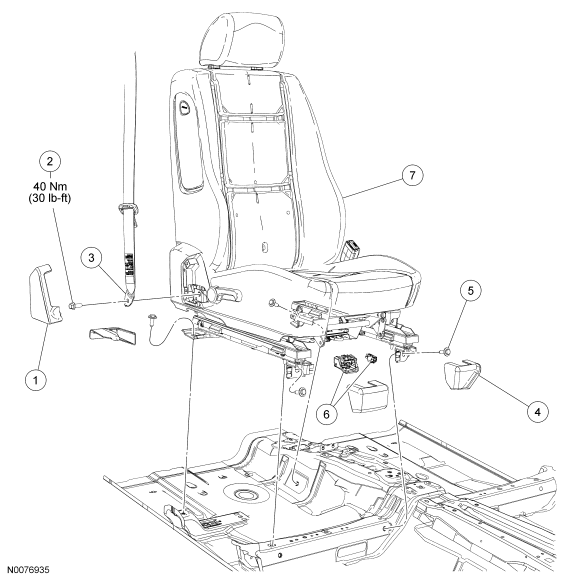

Passenger seat shown, driver seat similar.
NOTE:
The seat track-to-floor bolts must be tightened in the sequence described in this procedure.
| Item | Part Number | Description |
|---|---|---|
| 1 | 621A44 | Safety belt retractor belt anchor bolt cover (part of 62184) (passenger only) |
| 2 | W505274 | Safety belt retractor belt anchor bolt (passenger only) |
| 3 | - | Safety belt retractor belt anchor (part of 611B08) (passenger only) |
| 4 | - | Seat-to-floor bolt cover (4 required) |
| 5 | W707858 | Seat-to-floor bolt (4 required) |
| 6 | - | Electrical connectors (part of 14A698) |
| 7 | - | Front seat assembly |
