Seat Backrest - Rear, 60 Percent: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

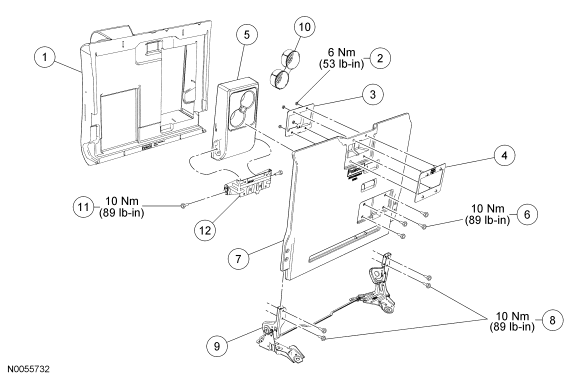

Seat backrest with armrest shown, seat backrest without armrest similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 66801/66601 | Backrest foam pad/trim cover |
| 2 | N620480 | Striker-to-backrest frame nut (4 required) |
| 3 | - | Backrest latch striker (part of 613A39) |
| 4 | - | Striker support plate (part of 613A39) |
| 5 | 67112 | Armrest assembly (if equipped) |
| 6 | N605892 | Armrest-to-backrest bolt (4 required, if equipped) |
| 7 | 613A39 | Backrest frame |
| 8 | N605892 | Backrest-to-pivot bolts (4 required) |
| 9 | - | Backrest pivot assembly (part of 613A39) |
| 10 | 67112 | Rubber insert, armrest cup holder (if equipped) |
| 11 | W712494 | Armrest pivot bolt (2 required) (if equipped) |
| 12 | 67210 | Armrest bracket (if equipped) |
