Window Glass - Rear: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

Illustration Tool Name Tool Number
GF0000080Courtesy of FORD MOTOR CO.
Interior Auto Glass Cut-Out Knife Kit (Electric) 164-R2450 or equivalent
GF0001989Courtesy of FORD MOTOR CO.
The Pumper 164-R2459 or equivalent
MATERIAL

Item Specification
Dow Urethane Adhesive
Betaseal® Express
-
Dow Urethane One Step Glass Primer
Betaprime® 5500 / 5500A / 5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-
Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

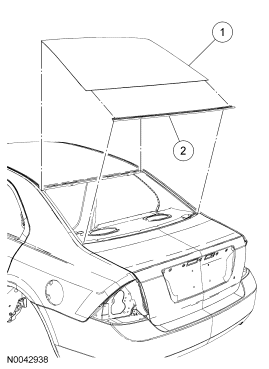

Fig 1: Exploded View Of Rear Window Glass
GF0028414Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5442006 Rear window glass
2 - Moulding
