Window Control Switch: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Fusion, Milan (MKZ Rear Only)

NOTE: LH front shown in illustration, all others similar.

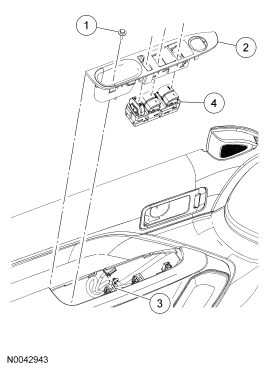

Fig 1: Exploded View Of Window Control Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W703268	Screw
2	54266	Window control switch bezel
3	-	Electrical connector (3 required)
4	14529	Window control switch

MKZ - Front Door Only

NOTE: LH shown in illustration, RH similar

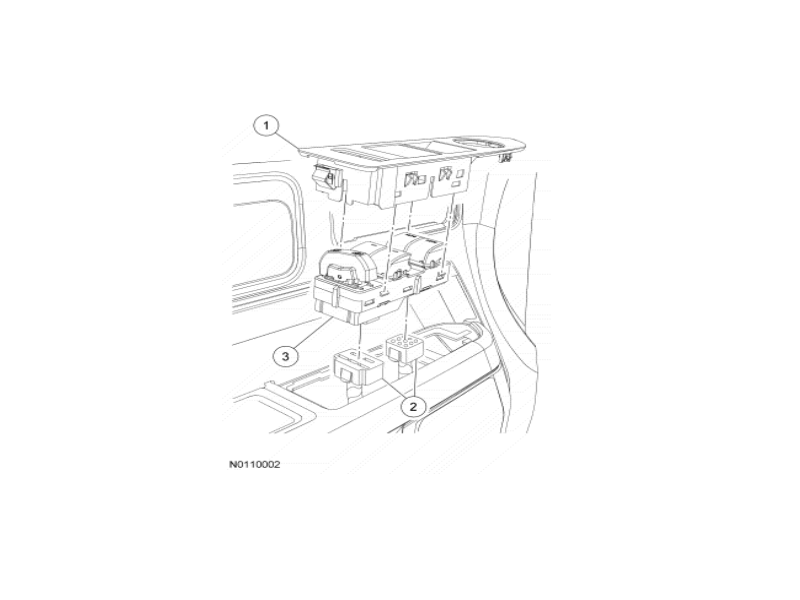

Fig 2: Exploded View Of Window Control Switch

Courtesy of FORD MOTOR CO.
