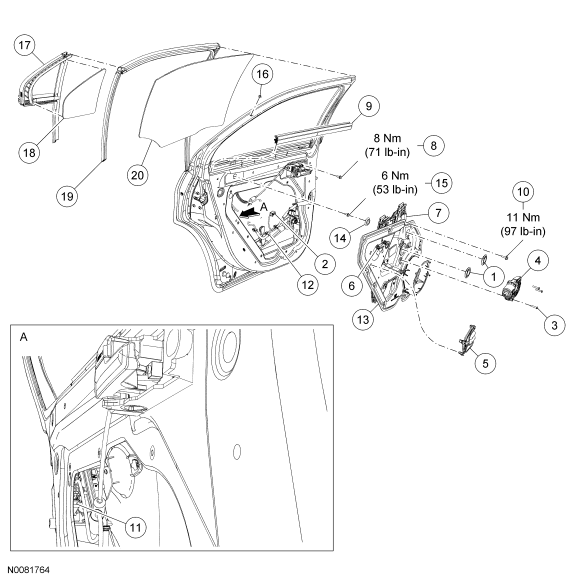

Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 378377 | Access hole plugs |
| 2 | 14489 | Electrical connector |
| 3 | W505966-S | Screw (3 required) |
| 4 | 5423395 LH/ 5423394 RH | Window regulator motor |
| 5 | 5402010 | Wiring harness cover plate |
| 6 | - | Clip |
| 7 | 5427001 LH/ 5427000 RH | Window regulator |
| 8 | - | Interior door handle bolt |
| 9 | 5425861 LH/ 5425860 RH | Interior door window glass belt moulding |
| 10 | W505421-S | Door module bolt (10 required) |
| 11 | 14A464 | Rear door latch electrical connector |
| 12 | - | Wiring harness retainer |
| 13 | 54235A89 LH/ 54235A88 RH | Rear door module |
| 14 | W651013-S | Access hole plug |
| 15 | W506410-S | Window regulator glass clamp bolt (2 required) |
| 16 | N811106-S | Upper C-pillar rear glass run bolt |
| 17 | 5429905 LH/ 5429904 RH | Rear door fixed glass weatherstrip |
| 18 | 5426871 LH/ 5426870 RH | Rear door fixed glass |
| 19 | 5425767 LH/ 5425766 RH | Rear door glass top run |
| 20 | 5425713 LH/ 5425712 RH | Rear door window glass |
- For additional information, refer to the appropriate procedures.
