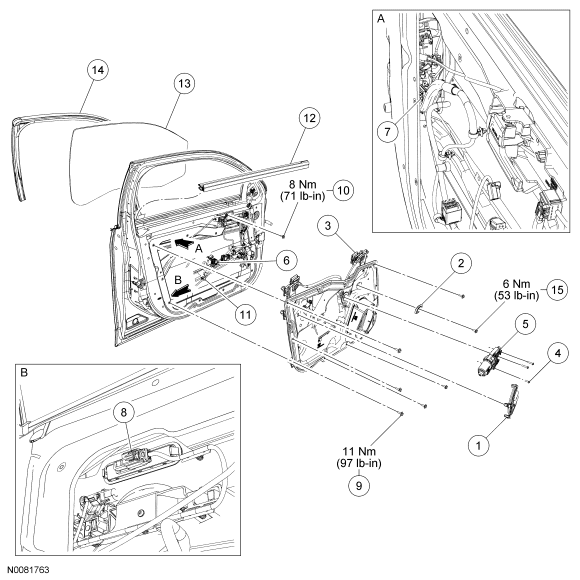

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5402010 | Wiring harness cover plate |
| 2 | 378377-S | Access hole plug |
| 3 | 5423201 LH/ 5423200 RH | Window regulator |
| 4 | W505966-S | Window motor screw (3 required) |
| 5 | 5423395 LH/ 5423394 RH | Window motor |
| 6 | 14489 | Window motor electrical connector |
| 7 | 14A464 | Door latch electrical connector |
| 8 | 14A464 | Keypad latch electrical connector |
| 9 | W505421-S | Door module bolt (10 required) |
| 10 | - | Interior door handle bolt |
| 11 | - | Wiring harness retainer |
| 12 | 5421457 LH/ 5421456 RH | Interior door window glass belt moulding |
| 13 | 5421411 LH/ 5425712 RH | Front door window glass |
| 14 | 5421597 LH/ 5421596 RH | Door window glass top run |
| 15 | 378377-S | Window glass clamp bolt (2 required) |
- For additional information, refer to the appropriate procedures.
