Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

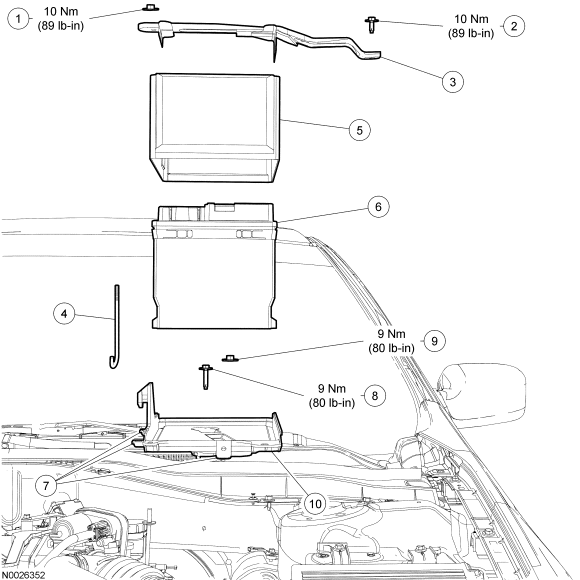

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707142 |
Battery hold-down bracket nut |
| 2 |
99726 |
Battery hold-down bracket bolt |
| 3 |
10716 |
Battery hold-down bracket |
| 4 |
10756 |
Battery hold-down bracket J-bolt |
| 5 |
10A659 |
Battery heat shield |
| 6 |
10655 |
Battery |
| 7 |
- |
Battery cable harness locators (3 required) (part of 14B060) |
| 8 |
W710610 |
Battery tray bolt |
| 9 |
W700430 |
Battery tray nut |
| 10 |
10723 |
Battery tray |

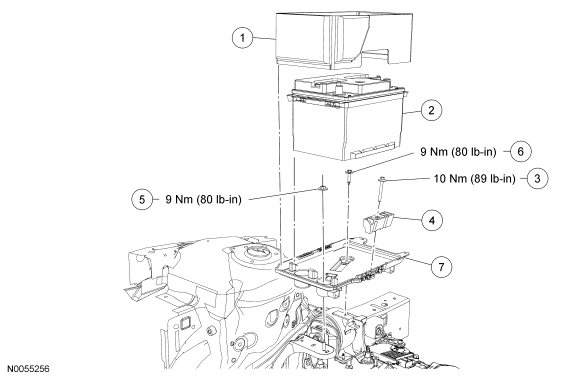

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
10A659 |
Battery heat shield |
| 2 |
10655 |
Battery |
| 3 |
N803471 |
Battery hold-down bracket bolt |
| 4 |
- |
Battery hold-down bracket |
| 5 |
- |
Battery tray nut |
| 6 |
- |
Battery tray bolt |
| 7 |
10723 |
Battery tray |
- For additional information, refer to the procedures.
