Battery Cables - 3.5L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

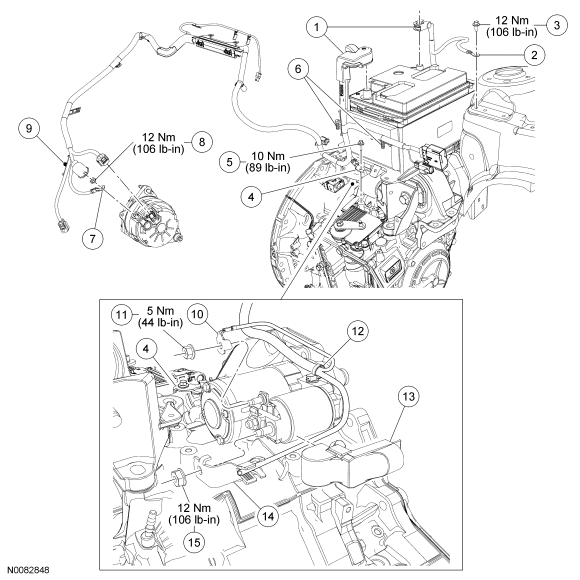

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery cables (part of 14B060) |
| 2 | - | Battery cable body ground terminal (part of 14B060) |
| 3 | W705936 | Battery cable body ground terminal bolt |
| 4 | - | Battery cable transaxle ground terminal (part of 14B060) |
| 5 | W503271 | Battery cable transaxle ground terminal bolt |
| 6 | - | Battery cable locators (2 required) (part of 14B060) |
| 7 | - | Generator B+ terminal (part of 14B060) |
| 8 | W706414 | Generator B+ terminal nut |
| 9 | - | Pin-type retainer, wiring harness |
| 10 | - | Starter motor solenoid wire terminal (part of 14B060) |
| 11 | W705790 | Starter motor solenoid wire terminal nut |
| 12 | - | Battery cable locator, starter |
| 13 | 11N087 | Starter solenoid terminal cover |
| 14 | - | Battery cable starter solenoid terminal (part of 14B060) |
| 15 | W706414 | Battery cable starter solenoid terminal nut |
