Battery Cables - 3.0L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

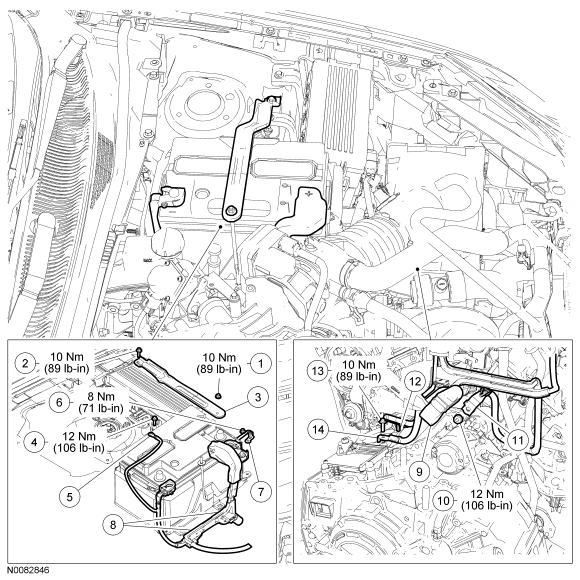

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707142 |
Battery hold-down bracket nut |
| 2 |
99726 |
Battery hold-down bracket bolt |
| 3 |
10716 |
Battery hold-down bracket |
| 4 |
W705936 |
Battery cable body ground terminal bolt |
| 5 |
- |
Battery cable body ground terminal (part of 14B060) |
| 6 |
W705790 |
Battery Junction Box (BJB) cable terminal nut |
| 7 |
- |
BJB cable terminal (part of 14290) |
| 8 |
- |
Battery cable locators (2 required) (part of 14B060) |
| 9 |
11N087 |
Starter solenoid terminal cover |
| 10 |
W706414 |
Battery cable starter solenoid terminal nut |
| 11 |
- |
Battery cable starter solenoid terminal (part of 14B060) |
| 12 |
- |
Battery cable harness locator (part of 14B060) |
| 13 |
W503271 |
Battery cable transaxle ground terminal bolt |
| 14 |
- |
Battery cable transaxle ground terminal (part of 14B060) |

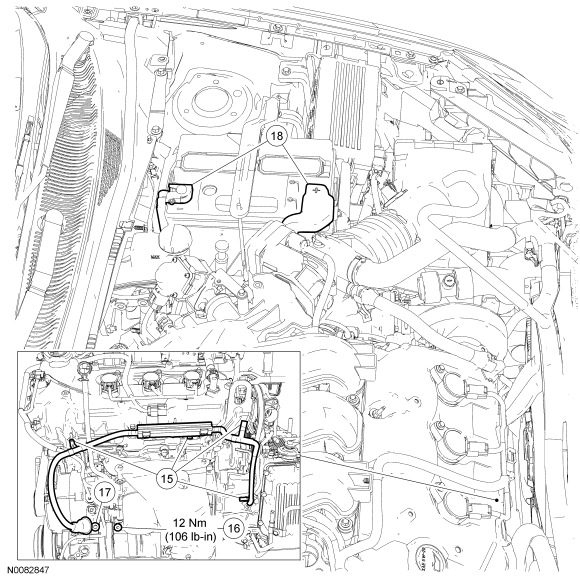

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 15 |
- |
Battery cable locators (4 required) (part of 14B060) |
| 16 |
W706414 |
Generator B+ terminal nut |
| 17 |
- |
Generator B+ cable terminal (part of 14B060) |
| 18 |
14B060 |
Battery cables |
