Starter Motor - 2.3L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

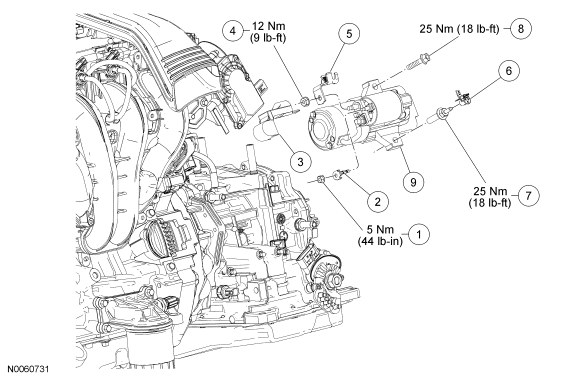

| Item | Part Number | Description |
|---|---|---|
| 1 | N805320 | Starter motor solenoid wire nut |
| 2 | 14463 | Starter motor solenoid wire (part of 12B637) |
| 3 | 14603 | Starter motor solenoid battery cable terminal cover |
| 4 | W706414 | Starter motor solenoid battery cable nut |
| 5 | 14463 | Starter motor solenoid battery cable (part of 14B060) |
| 6 | 14A169 | Wire harness retainer (part of 12B637) |
| 7 | W706194 | Starter motor stud bolt |
| 8 | W705877 | Starter motor bolt |
| 9 | 11000 | Starter motor |
