Removal And Installation: Radiator

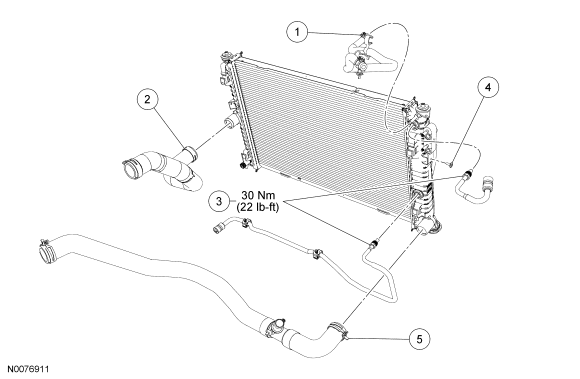

Fig 1: Exploded View Of Radiator With Torque Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

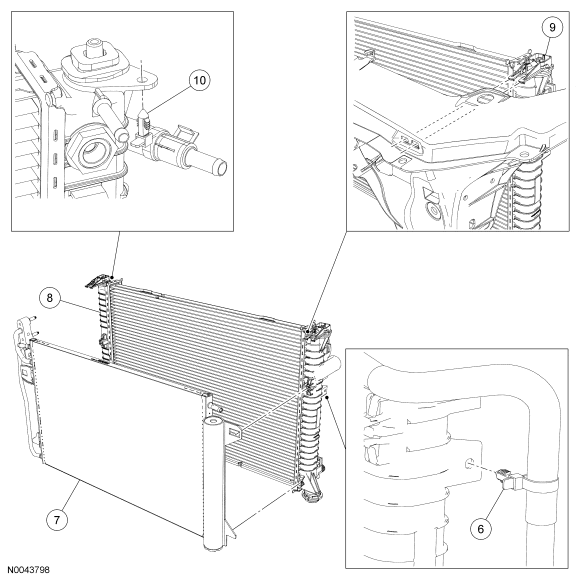

Fig 2: Exploded View Of Radiator (2 Of 2)

Courtesy of FORD MOTOR CO.

All vehicles

1. Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
2. Remove the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD .
3. Detach the power steering hose retainer from the radiator.
Fig 3: Locating Power Steering Hose Retainer
Courtesy of FORD MOTOR CO.
4. Disconnect the upper radiator hose from the radiator.
5. Detach the retainer from the radiator.
Fig 4: Locating Radiator Retainer
Courtesy of FORD MOTOR CO.
6. Disconnect the radiator-to-degas bottle hose from the radiator.

Automatic transmission vehicles

7. Disconnect the 2 transmission cooling tubes from the radiator.
   • To install, tighten to 30 Nm (22 lb-ft).

All vehicles

8. Disconnect the lower radiator hose from the radiator.
9. Lift and remove the tabs from the upper radiator support and position the radiator towards the engine.
Fig 5: Locating Upper Radiator Support Tab
Courtesy of FORD MOTOR CO.
10. Remove the A/C condensor-to-radiator pin-type retainer.
Fig 6: Locating A/C Condensor-To-Radiator Pushpin-Type Retainer
Courtesy of FORD MOTOR CO.
11. Squeeze the tabs and separate the A/C condenser from the radiator.
    • Remove the radiator.
Fig 7: Locating A/C Condenser Tabs
Courtesy of FORD MOTOR CO.
12. To install, reverse the removal procedure.
13. Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
