Coolant Pump - 2.3L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

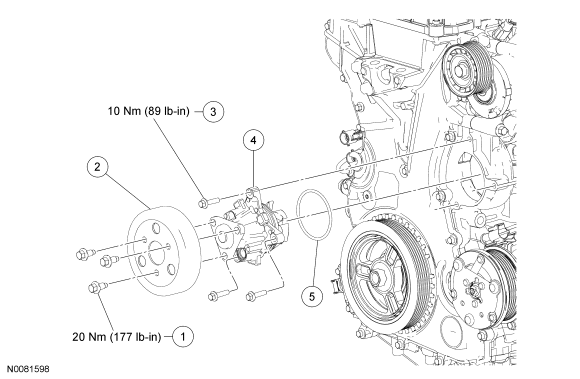

| Item | Part Number | Description |
|---|---|---|
| 1 | W500221 | Coolant pump pulley bolt (3 required) |
| 2 | 8509 | Coolant pump pulley |
| 3 | W500015 | Coolant pump bolt (3 required) |
| 4 | 8501 | Coolant pump |
| 5 | 8507 | Coolant pump O-ring seal |
