Bypass Tube - 3.0L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

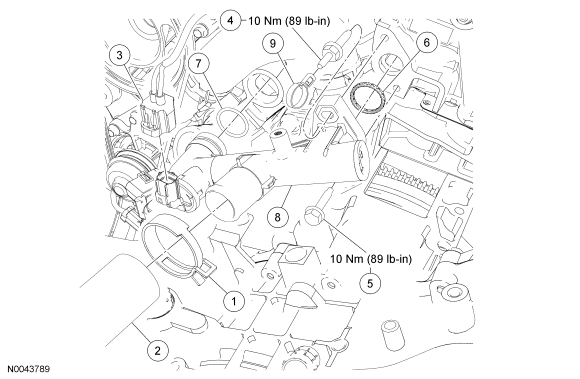

| Item | Part Number | Description |
|---|---|---|
| 1 | 8287 | Hose clamp |
| 2 | 8A520 | Bypass tube-to-thermostat housing hose |
| 3 | 14A464 | Engine Coolant Temperature (ECT) sensor electrical connector |
| 4 | W701632 | Stud bolt |
| 5 | W7016699 | Bolt |
| 6 | 8548 | O-ring seal |
| 7 | 391552 | O-ring seal |
| 8 | 8548 | Bypass tube |
| 9 | - | Wiring harness retainer |
