Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

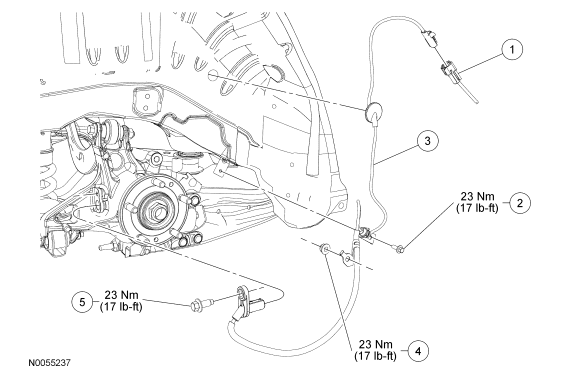

| Item |
Part Number |
Description |
| 1 |
- |
Wheel speed sensor electrical connector (part of 14A227) |
| 2 |
W505253 |
Wheel speed sensor harness bolt |
| 3 |
2C186 RH/ 2C187 LH |
Wheel speed sensor |
| 4 |
W520102 |
Wheel speed sensor harness nut |
| 5 |
W500222 |
Wheel speed sensor bolt |
