Anti-Lock Brake System (Abs) Module: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

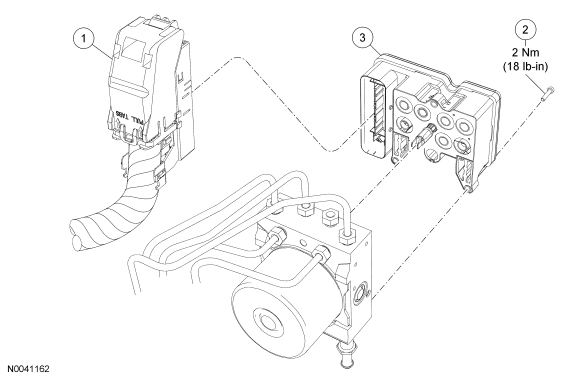

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specification
GF0029612Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - ABS module electrical connector (part of 14290)
2 2M101 ABS module screw (3 required)
3 2C219 ABS module
