Tie Rod - Inner: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

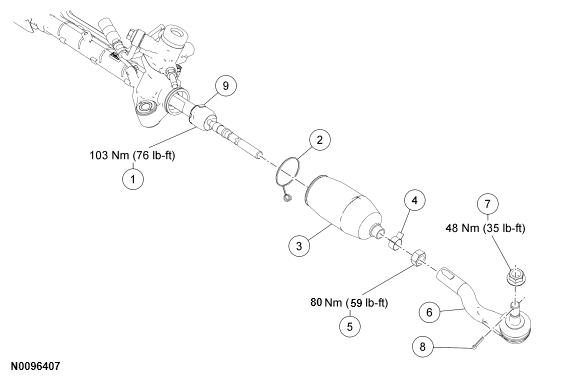

Left side shown, right side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
3280 |
Inner tie-rod end |
| 2 |
3C650A |
Inner bellows boot clamp |
| 3 |
3K668 |
Bellows boot |
| 4 |
3C650 |
Outer bellows boot clamp |
| 5 |
- |
Tie-rod jam nut |
| 6 |
3290 |
Outer tie-rod end |
| 7 |
6E5C |
Outer tie-rod end nut |
| 8 |
- |
Cotter pin |
| 9 |
32132 |
Rock washer |
