Steering Gear - All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Tie-Rod End Remover | 211-105 (T85M-3395-A) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
NOTE:
The 3.0L shown, 3.5L similar.

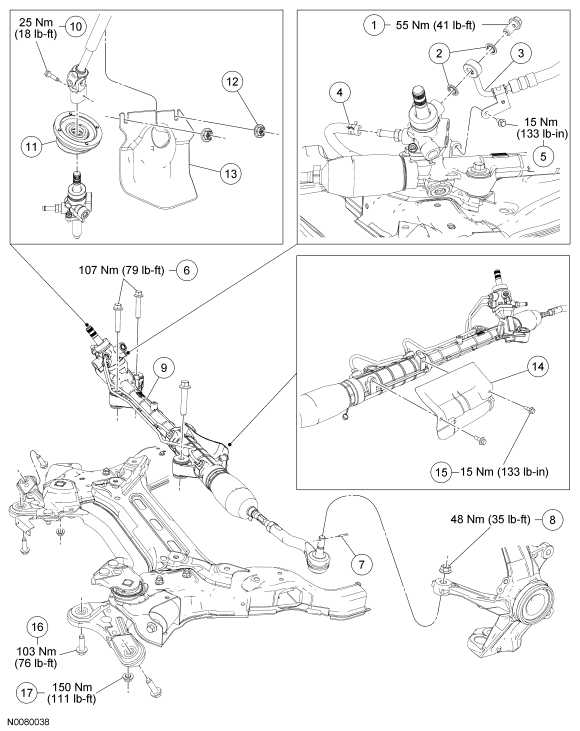

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear banjo bolt (part of 3A705) |
| 2 | - | Power steering pressure line seals (part of 3A705) |
| 3 | - | Power steering pressure line (part of 3A719) |
| 4 | 3A713 | Steering gear-to-fluid cooler return hose |
| 5 | W712155 | Pressure line bracket-to-steering gear bolt |
| 6 | 3C497 | Steering gear bolts (3 required) |
| 7 | 99221 | Cotter pin (2 required) |
| 8 | 6E5C | Outer tie-rod end nut (2 required) |
| 9 | 3504 | Steering gear |
| 10 | 3R827 | Steering column shaft-to-steering gear bolt |
| 11 | 3611B | Steering gear/dash seal |
| 12 | W704904 | Lower steering column shaft joint cover nut (2 required) |
| 13 | 3611A | Lower steering column shaft joint cover |
| 14 | 391727 | Steering gear heat shield |
| 15 | 3530B | Steering gear heat shield bolt (2 required) |
| 16 | 3C496 | Subframe bolt (4 required) |
| 17 | W520416 | Subframe nut (2 required) |
