Power Steering Pump to Steering Gear Pressure Line - All-Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
3.0L Engine

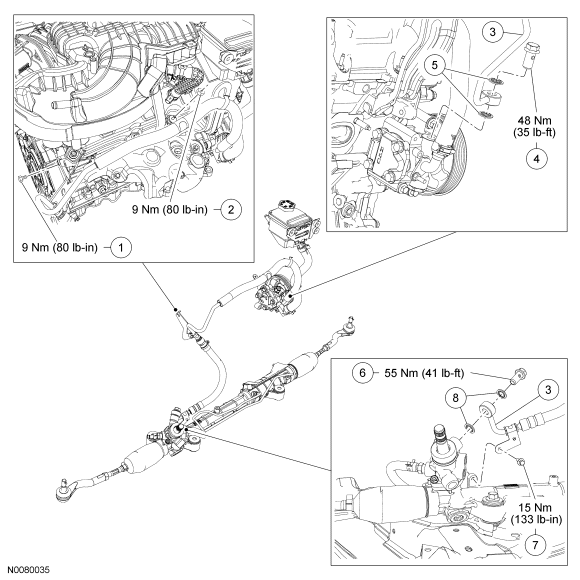

Fig 1: Exploded View Of Power Steering Pump to Steering Gear Pressure Line With Torque Specifications - 3.0L Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering pressure line (part of 3A719) |
| 2 | - | Pressure line-to-power steering pump banjo bolt (part of 3A719) |
| 3 | - | Power steering pressure line seals (part of 3A719) |
| 4 | W506413 | Pressure line bracket-to-engine bolts (2 required) |
| 5 | W506413 | Pressure line bracket-to-power steering fluid reservoir bolt |
| 6 | - | Pressure line-to-steering gear banjo bolt (part of 3A719) |
| 7 | W712155 | Pressure line bracket-to-steering gear bolt |
| 8 | - | Power steering pressure line seals (part of 3A719) |
3.5L Engine

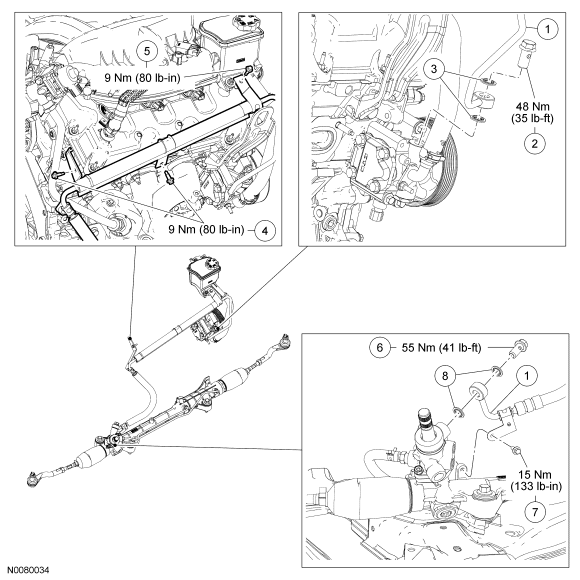

Fig 2: Exploded View Of Power Steering Pump to Steering Gear Pressure Line With Torque Specifications - 3.5L Engine
| Item | Part Number | Description |
|---|---|---|
| 1 | W506413 | Pressure line bracket-to-engine bolt |
| 2 | W703836 | Pressure line bracket-to-RH valve cover stud nut |
| 3 | - | Power steering pressure line (part of 3A719) |
| 4 | - | Pressure line-to-power steering pump banjo bolt (part of 3A719) |
| 5 | - | Power steering pressure line seals (part of 3A719) |
| 6 | - | Pressure line-to-steering gear banjo bolt (part of 3A719) |
| 7 | W712115 | Pressure line bracket-to-steering gear bolt |
| 8 | - | Power steering pressure line seals (part of 3A719) |
