Power Steering Pump - 3.0L, 3.5L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

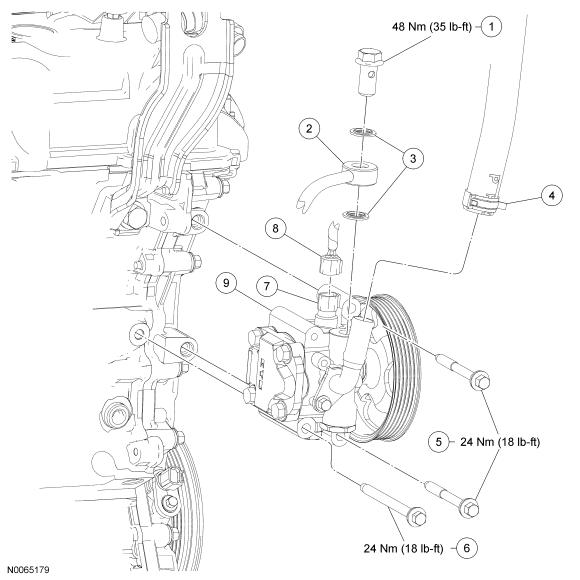

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-power steering pump banjo bolt (part of 3A705) |
| 2 | - | Power steering pressure line (part of 3A719) |
| 3 | - | Power steering pressure line seals (part of 3A705) |
| 4 | 3691 | Power steering pump supply hose |
| 5 | W701526 | Power steering pump bolts (2 required) |
| 6 | W701234 | Power steering pump bolt |
| 7 | - | Power steering pressure switch electrical connector |
| 8 | 3N824 | Power steering pressure switch |
| 9 | 3A696 | Power steering pump |

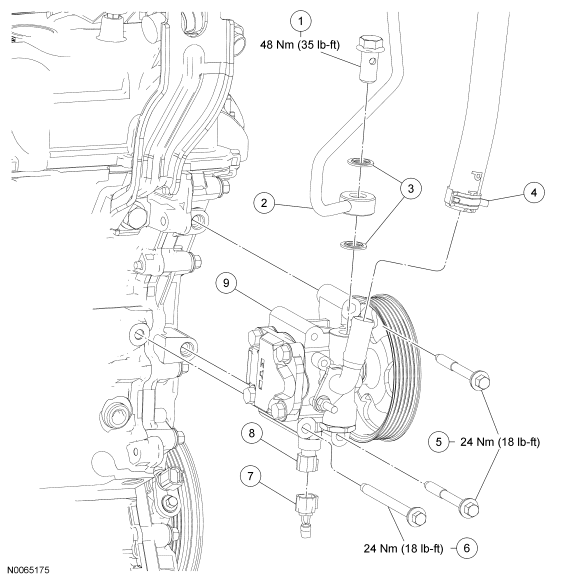

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-power steering pump banjo bolt (part of 3A705) |
| 2 | - | Power steering pressure line (part of 3A719) |
| 3 | - | Power steering pressure line seals (part of 3A705) |
| 4 | 3691 | Power steering pump supply hose |
| 5 | W701526 | Power steering pump bolts (2 required) |
| 6 | W701234 | Power steering pump bolt |
| 7 | - | Power steering pressure switch electrical connector |
| 8 | 3N824 | Power steering pressure switch |
| 9 | 3A696 | Power steering pump |
