Power Steering Pump - 2.3L: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

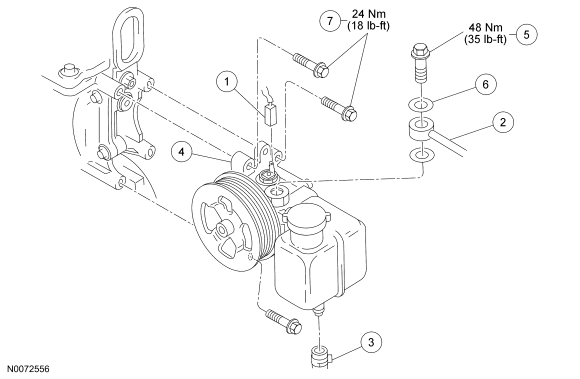

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications - 2.3L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Power steering pressure switch electrical connector
2	-	Power steering pressure line (part of 3A719)
3	3R807	Power steering return hose
4	3D639	Power steering pump
5	-	Pressure line-to-power steering pump banjo bolt (part of 3A705)
6	-	Power steering pressure line seal (part of 3A705)
7	W500111	Power steering pump bolts (3 required)
