Power Steering Fluid Reservoir - 3.5L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

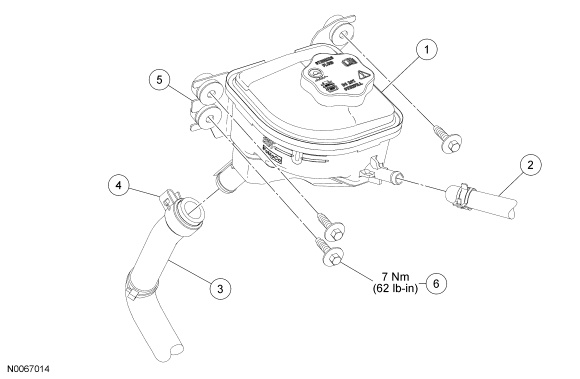

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A697 | Power steering fluid reservoir |
| 2 | 3A713A | Power steering return hose and clamp |
| 3 | 3691 | Power steering pump supply hose |
| 4 | - | Power steering pump supply hose clamp (part of 3691) |
| 5 | 3490 | Power steering fluid reservoir bracket |
| 6 | W712963 | Power steering fluid reservoir bracket bolt (3 required) |
