Power Steering Fluid Reservoir - 3.0L: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

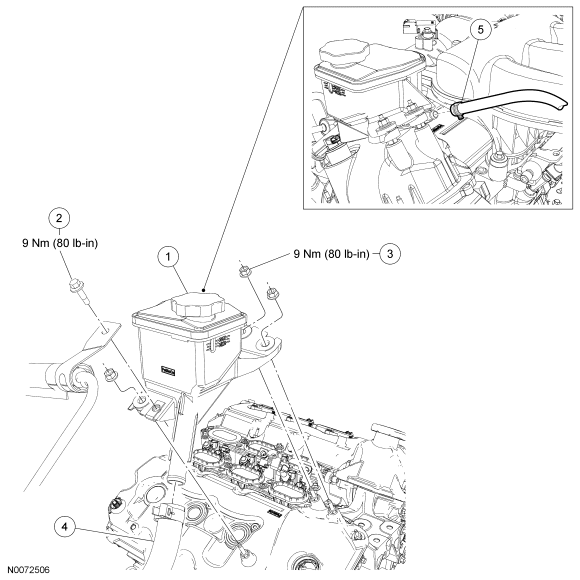

| Item | Part Number | Description |
|---|---|---|
| 1 | 3R700 | Power steering fluid reservoir |
| 2 | W506413 | Pressure line bracket-to-power steering fluid reservoir bolt |
| 3 | W520111 | Power steering fluid reservoir nut (3 required) |
| 4 | 3691 | Power steering pump supply hose |
| 5 | 3A713A | Power steering return hose |
