Rear Disc Brake: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |
NOTE:

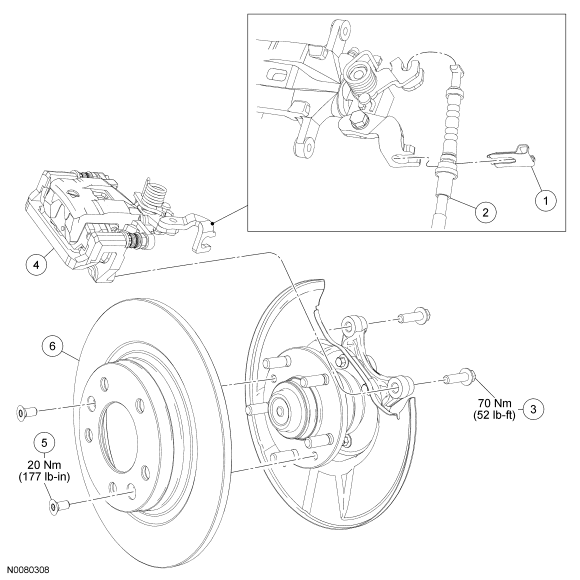

Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2860 | Parking brake cable conduit retaining clip |
| 2 | 2A815 | Parking brake cable |
| 3 | W711240 | Brake caliper anchor plate bolt (2 required) |
| 4 | - | Brake caliper, brake pads and brake caliper anchor plate assembly |
| 5 | W505741 | Brake disc screw (2 required) |
| 6 | 2C026 | Brake disc |
