Rear Disc Brake Shield - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

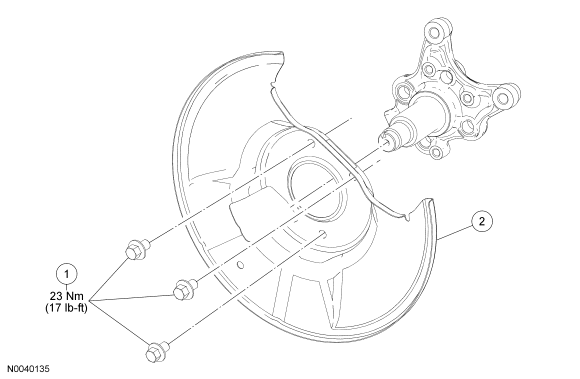

Fig 1: Exploded View Of Brake Disc Shield With Torque Specification - Front Wheel Drive (FWD)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N500020	Brake disc shield bolts (3 required)
2	2K045 RH/ 2K046 LH	Brake disc shield
