Rear Brake Caliper: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
NOTE:

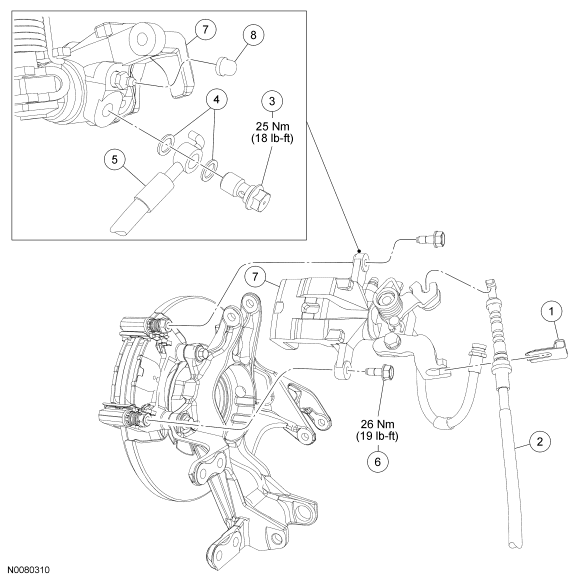

Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2860 | Parking brake cable conduit retaining clip |
| 2 | 2A815 | Parking brake cable |
| 3 | 2M085 | Brake caliper flow bolt |
| 4 | 99562 | Copper washers (2 required) |
| 5 | 2282 | Brake hose |
| 6 | - | Brake caliper guide pin bolt (2 required) (part of 2386) |
| 7 | 2552 LH/ 2553 RH | Brake caliper |
| 8 | 2426 | Brake caliper bleeder screw cap |
