Rear Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

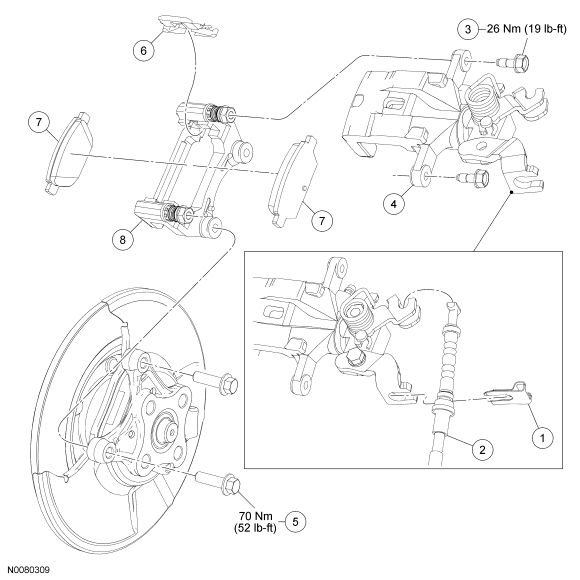

Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2860 | Parking brake cable conduit retaining clip |
| 2 | 2A815 | Parking brake cable |
| 3 | - | Brake caliper guide pin bolt (2 required) (part of 2386) |
| 4 | 2552 LH/ 2553 RH | Brake caliper |
| 5 | W711240 | Brake caliper anchor plate bolt (2 required) |
| 6 | - | Brake pad retraction clip (2 required) (part of 2200) |
| 7 | 2200 | Brake pads (2 required) |
| 8 | 2B512 LH/ 2B511 RH | Brake caliper anchor plate |
