Front Brake Pads: Installation
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
- Install the 4 brake pad slide clips.
- If installing new brake pads, using a C-clamp and a worn brake, compress the disc brake caliper pistons into the caliper.
- Install the brake pad slides.
- Apply grease that is supplied to the pad backing plate and shims in the areas indicated.
- Apply grease to the back of the brake pad.
- Apply grease to the inner piston side stainless steel shim.
- Apply grease to the outer stainless steel shim.

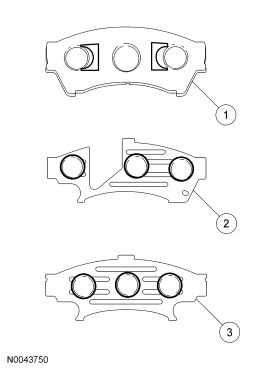

- Install the brake pad shims and the stainless steel shims to the brake pads.
- Install the 2 brake pad retraction springs.
- Inspect the guide pin boots and make sure they are seated on the anchor plate correctly. The boot has a lip that fits under the edge of the anchor plate extension.
- Position the brake caliper and install the 2 guide pin bolts.
- Tighten to 27 Nm (20 lb-ft).
- Fill the brake master cylinder reservoir with clean, specified brake fluid.
- Install the wheel and tire. For additional information, refer to WHEELS AND TIRES
article.
- Apply brakes several times to verify correct brake operation.
NOTE:
Protect the piston and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.
NOTE:
Make sure that the caliper guide pin boots are fully seated or damage to the caliper guide pin boots can occur.
NOTE:
LH inboard shim shown.
NOTE:
The cut shim is directional and used on the inboard pad only. The cut is positioned toward the leading side. Correct installation can be verified if the shim hole is positioned on the bottom side.
NOTE:
The caliper guide pin boots must be seated correctly on the anchor plate or the guide pins may become contaminated.
NOTE:
Make sure that the brake caliper hose does not become twisted.
