Parking Lamp Bulb - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

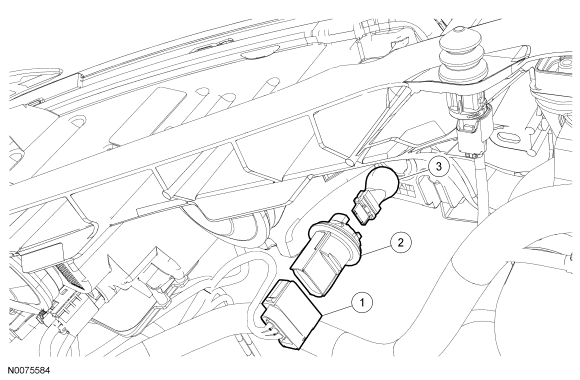

NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front parking lamp electrical connector (part of 14290) |
| 2 | 13411 | Front parking lamp bulb socket |
| 3 | 13466 | Front parking lamp bulb |
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706805 | Fender splash shield access cover screw |
| 2 | 16F029 | Fender splash shield access cover |
| Item | Part Number | Description |
|---|---|---|
| 3 | - | Front parking lamp electrical connector (part of 14290) |
| 4 | 13411 | Front parking lamp bulb socket |
| 5 | 13466 | Front parking lamp bulb |
