High Mounted STOPLAMP: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

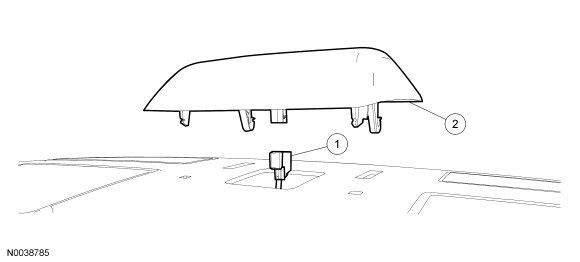

Fig 1: Parcel Shelf Mounted
GF0030527Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - High mounted stoplamp electrical connector (part of 14A005)
2 13A613 High mounted stoplamp

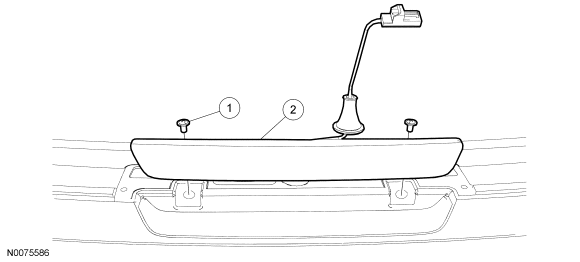

Fig 2: Spoiler Mounted
GF0041653Courtesy of FORD MOTOR CO.
Item Description
1 High mounted stoplamp screws (2 required)
2 High mounted stoplamp
