WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

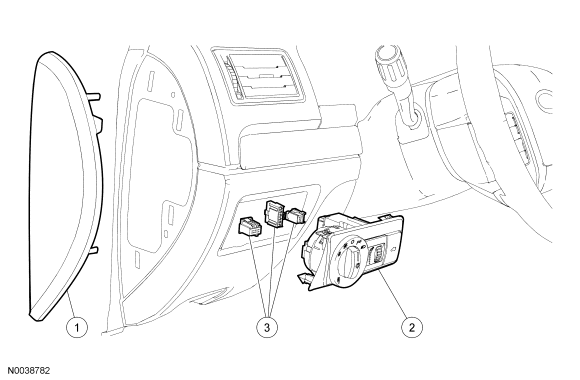

Fig 1: Exploded View Of Headlamp Switch
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
5404481
Instrument panel side finish panel
2
11654
Headlamp switch
3
-
Headlamp switch electrical connectors (part of 14401)
