Headlamp Bulb - RH: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

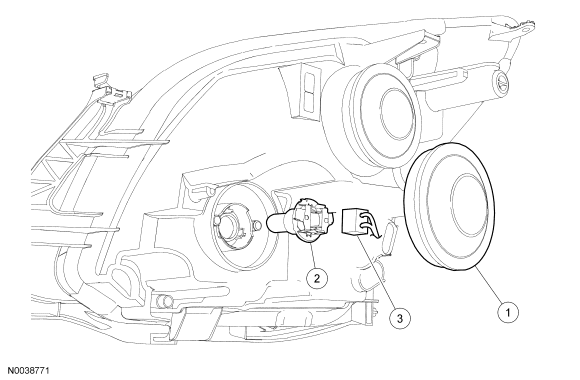

Fig 1: Exploded View Of Headlamp Bulb - RH (High Beam)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13N019	Headlamp bulb protective cover
2	13N021	Headlamp high beam bulb
3	-	Headlamp high beam bulb electrical connector (part of 13006)

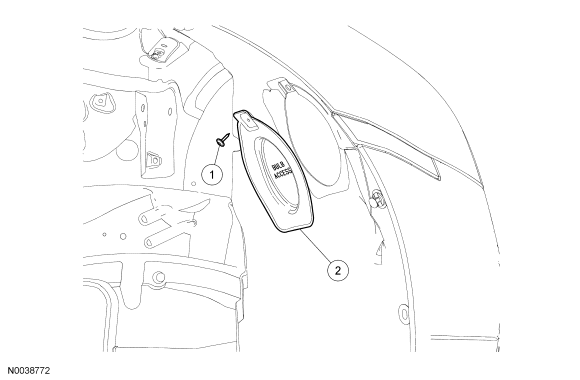

Fig 2: Exploded View Of Headlamp Bulb - RH (Low Beam)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706805	Fender splash shield access cover screw
2	16F029	Fender splash shield access cover

NOTE: Standard headlamp bulb shown, high intensity discharge (HID) bulb similar.

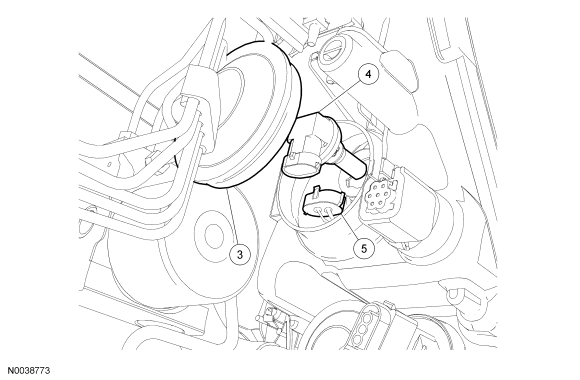

Fig 3: Exploded View Of Standard Headlamp Bulb

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	13N019	Headlamp bulb protective cover
4	13N021	Headlamp low beam bulb
5	-	Headlamp low beam bulb electrical connector (part of 13006)
