Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

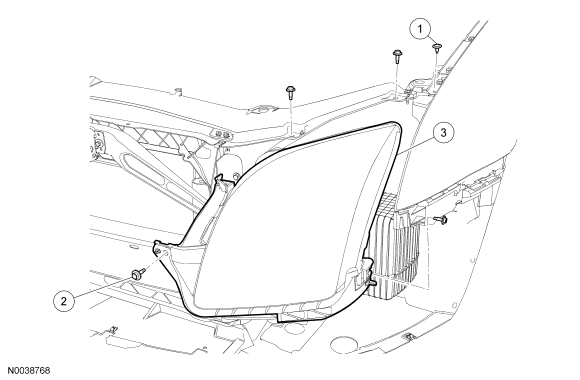

Fusion shown, Milan and MKZ similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp assembly pin-type retainer (part of 13005) |
| 2 |
W711676 |
Headlamp assembly bolts (4 required) |
| 3 |
13005/13006 |
Headlamp assembly (LH/RH) |
