Removal And Installation: Ballast: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

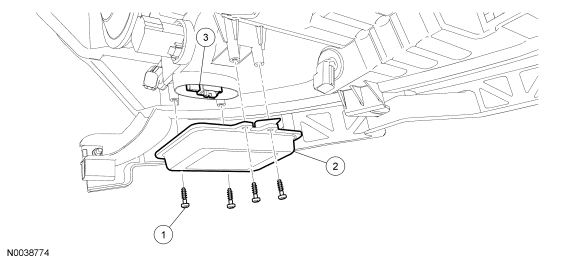

Fig 1: Exploded View Of Ballast

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Ballast screws (4 required) (part of 13005)
2	13C170	Ballast
3	-	Ballast electrical connectors (part of 13005)
