Removal And Installation: Halfshaft: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Halfshaft Remover	205-832
Courtesy of FORD MOTOR CO.	Installer, Halfshaft	204-161 (T97P-1175-A)
Courtesy of FORD MOTOR CO.	Protector, Differential Oil Seal (pair)	205-461
Courtesy of FORD MOTOR CO.	Remover, Front Wheel Hub	205-D070 (D93P-1175-B) or equivalent

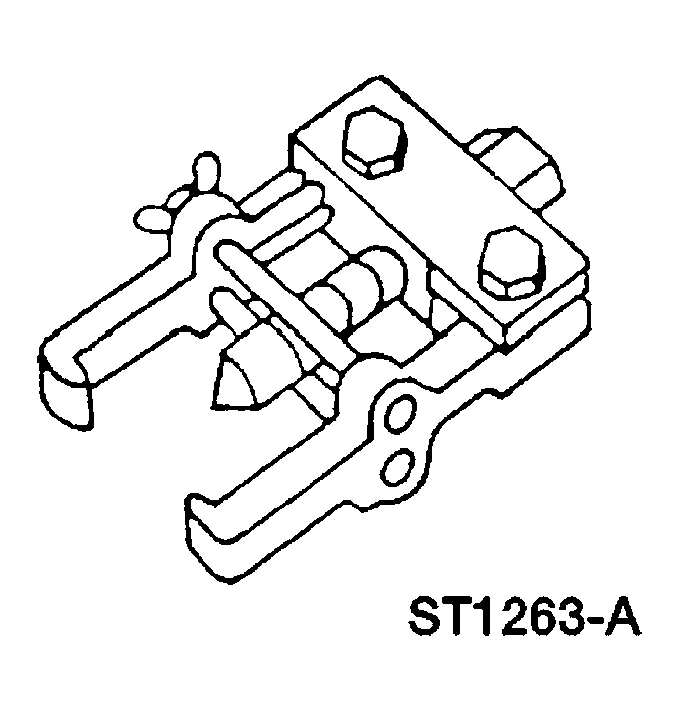

Courtesy of FORD MOTOR CO.	Remover, Steering Arm	211-003 (T64P-3596-F)
Courtesy of FORD MOTOR CO.	Slide Hammer	100-001 (T50T-100-A)

Halfshaft (View 1 of 2)

NOTE: LH halfshaft shown, RH similar.

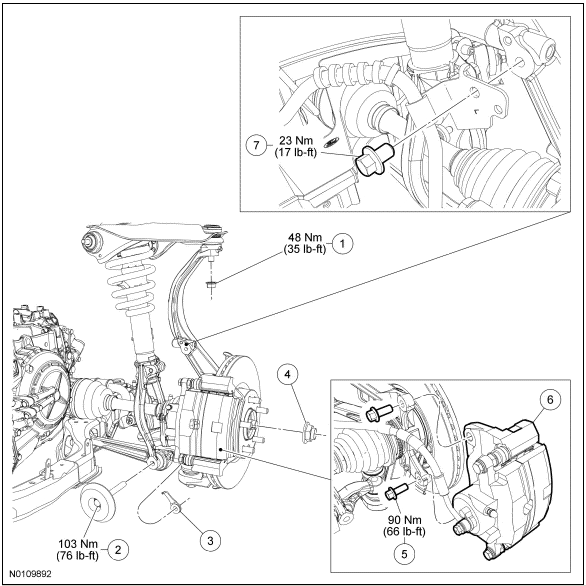

Fig 1: Exploded View Of Halfshaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W302122	Upper ball joint nut
2	W500550	Damper fork-to-front lower arm bolt
3	W302117	Damper fork-to-front lower arm flagnut
4	3B477	Wheel hub nut
5	W711241	Brake caliper anchor plate bolt
6	-	Brake caliper and anchor plate assembly
7	W500020	Brake flexible hose-to-wheel knuckle bolt

Halfshaft (View 1 of 2)

NOTE: LH halfshaft shown, RH similar.

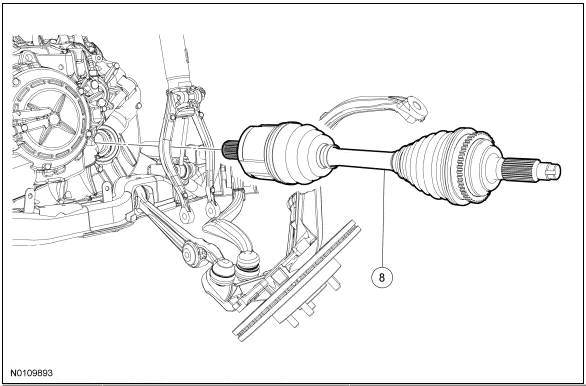

Fig 2: Exploded View Of Halfshaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	3A427/3A428	LH/RH halfshaft
