Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Front Wheel Hub | 205-D070 (D93P-1175-B) or equivalent | |
| Installer, Halfshaft | 204-161 (T97P-1175-4) |

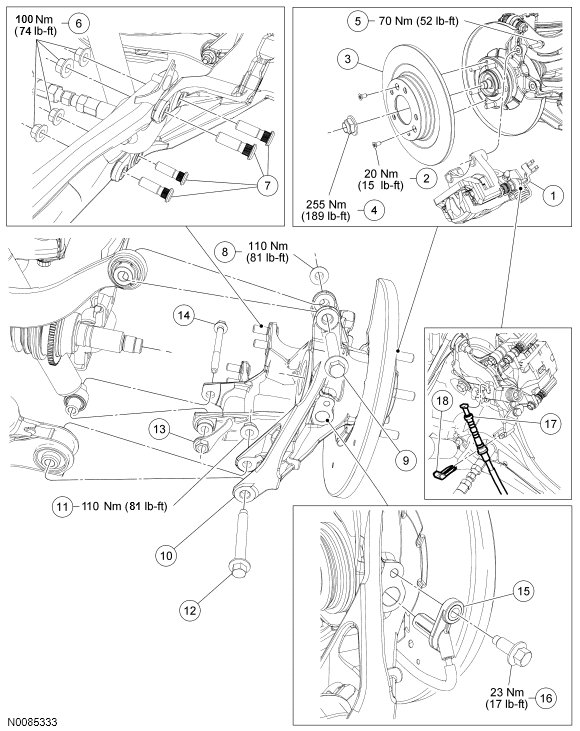

NOTE:
All-Wheel Drive (AWD) MKZ vehicle shown, other vehicles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper and anchor plate assembly |
| 2 | W505741 | Brake disc bolt (2 required) |
| 3 | 2C026 | Brake disc |
| 4 | W712435 | Wheel hub nut |
| 5 | W711240 | Brake caliper anchor plate bolt (2 required) |
| 6 | W520515 | Trailing arm-to-wheel knuckle nut (4 required) |
| 7 | 5B860 | Trailing arm-to-wheel knuckle bolts (4 required) |
| 8 | W520515 | Upper arm outboard nut |
| 9 | W500547 | Upper arm outboard bolt |
| 10 | 5A968 | Wheel knuckle |
| 11 | W520215 | Lower arm outboard nut |
| 12 | W513798 | Lower arm outboard bolt |
| 13 | W302116 | Shock absorber lower flag nut |
| 14 | W704586 | Shock absorber lower bolt |
| 15 | 2C187 LH/ 2C187 RH | Wheel speed sensor |
| 16 | W500222 | Wheel speed sensor bolt |
| 17 | 2860 | Parking brake cable clip |
| 18 | 2A815 | Parking brake cable assembly |
