Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Drive Pinion Bearing Cone | 205-D002 (D79L-4621-A) or equivalent | |
| Installer, Wheel Bearing Cup | 205-147 | |
| Remover/Installer, Wheel Bearing Cup | 204-020 | |
| Step Plate | 205-117 |

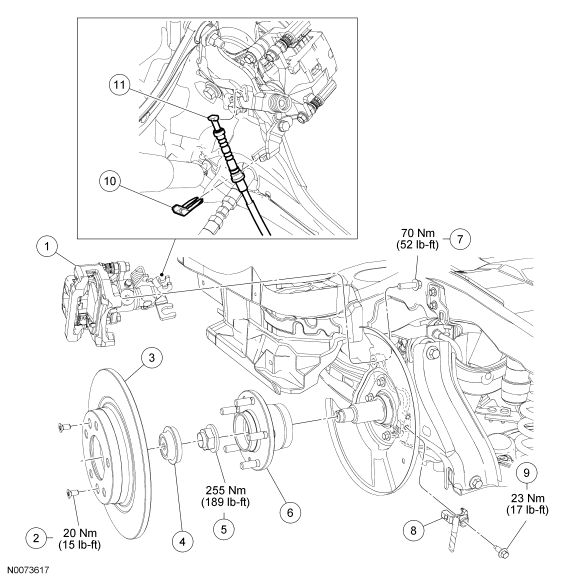

Fig 1: Exploded View Of Wheel Bearing & Wheel Hub With Torque Specifications - Front Wheel Drive (FWD) Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper and anchor plate assembly |
| 2 | W505741 | Brake disc bolt (2 required) |
| 3 | 2C026 | Brake disc |
| 4 | 1N135 | Grease cap |
| 5 | W712435 | Wheel hub nut |
| 6 | 1104 | Wheel hub and bearing assembly |
| 7 | W711240 | Brake caliper anchor plate bolt (2 required) |
| 8 | 2C187 | Wheel speed sensor |
| 9 | W500222 | Wheel speed sensor bolt |
| 10 | 2860 | Parking brake cable clip |
| 11 | 2A815 | Rear parking brake cable assembly |

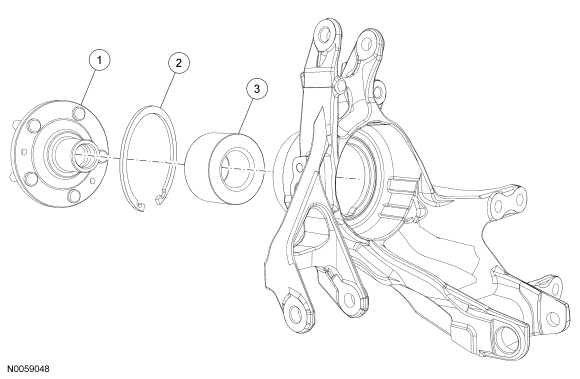

| Item | Part Number | Description |
|---|---|---|
| 1 | 1104 | Wheel hub |
| 2 | W303280 | Snap ring |
| 3 | 1215 | Wheel bearing |
