Upper Arm: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

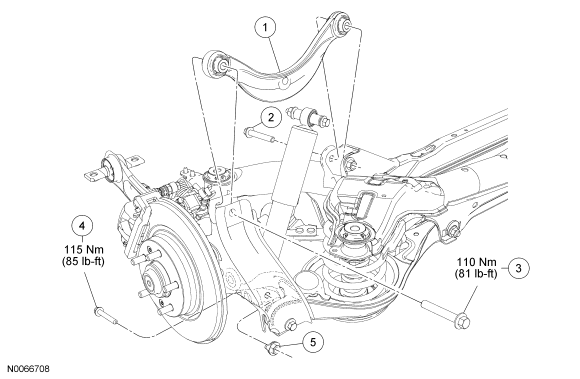

Fig 1: Exploded View Of Upper Arm With Torque Specifications - Front Wheel Drive (FWD) Vehicles
GF0029514Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5500 Upper arm
2 W712769 Upper arm inboard bolt
3 W500546 Upper arm outboard bolt
4 W704586 Shock absorber lower bolt
5 W302116 Shock absorber lower flag nut

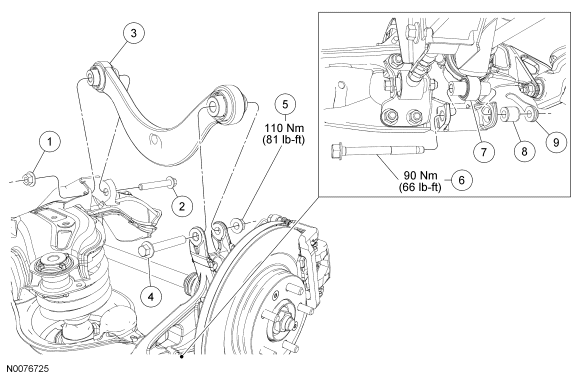

Fig 2: Exploded View Of Upper Arm With Torque Specifications - All-Wheel Drive (AWD) Vehicles
GF0029515Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520215 Upper arm inboard nut
2 W712769 Upper arm inboard bolt
3 5500 Upper arm
4 W500547 Upper arm outboard bolt
5 W520215 Upper arm outboard nut
6 W712880 Shock absorber lower bolt
7 18080 Shock absorber
8 - Shock absorber lower mount bushing
9 W302116 Shock absorber lower flag nut
