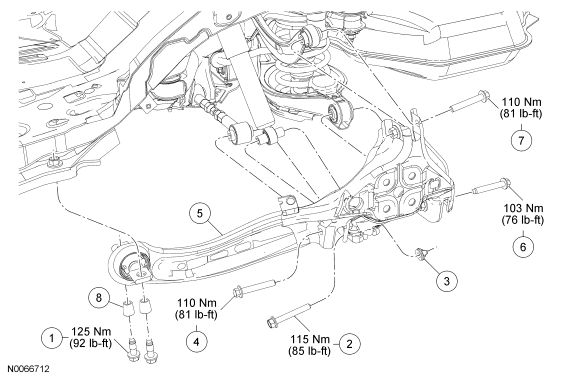

Fig 1: Exploded View Of Trailing Arm With Torque Specifications - Front Wheel Drive (FWD) Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711493	Trailing arm-to-frame bolt (2 required)
2	W704586	Shock absorber lower bolt
3	W302116	Shock absorber lower flag nut
4	W500546	Toe link outboard bolt
5	5A995 LH/ 5A994 RH	Trailing arm
6	W513798	Lower arm outboard bolt
7	W500546	Upper arm outboard bolt
8	6C028	Cone washer (2 required)

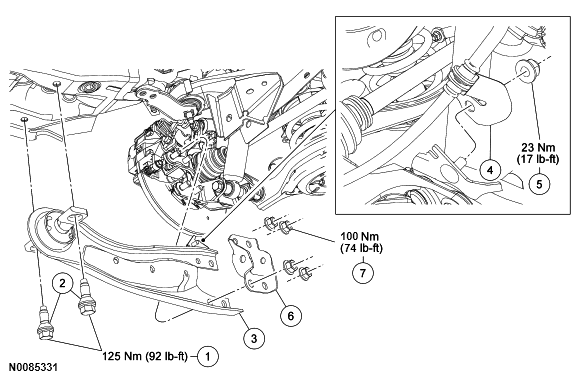

Fig 2: Exploded View Of Trailing Arm With Torque Specifications - All-Wheel Drive (AWD) Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711493	Trailing arm-to-frame bolts (2 required)
2	6C028	Cone washers (2 required)
3	5A995 LH/ 5A994 RH	Trailing arm
4	-	Wheel speed sensor bracket (part of 2C186 RH/2C187 LH)
5	W520102	Wheel speed sensor bracket nut
6	5A757	Trailing arm toe link bracket
7	5B860	Trailing arm-to-knuckle nut (4 required)
