Toe Link: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

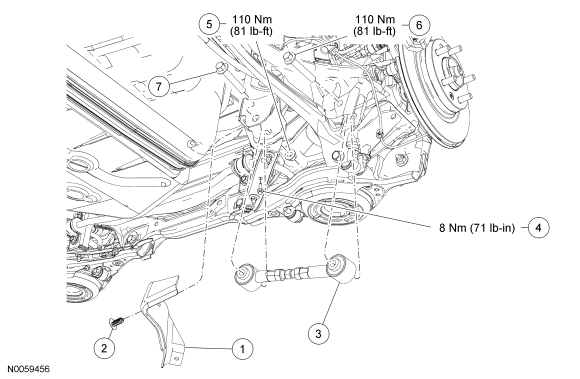

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
5G095 |
Toe link shield |
| 2 |
W709453 |
Push pin |
| 3 |
5B674 |
Toe link |
| 4 |
W500214 |
Toe link shield bolt |
| 5 |
W520515 |
Toe link inboard nut |
| 6 |
W500547 |
Toe link outboard bolt |
| 7 |
W500547 |
Toe link inboard bolt |

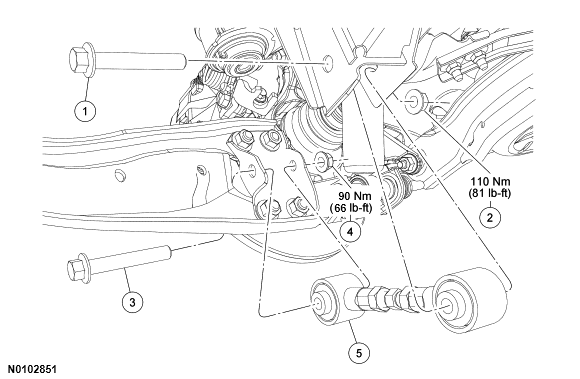

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500547 |
Toe link inboard bolt |
| 2 |
W520515 |
Toe link inboard nut |
| 3 |
W500547 |
Toe link outboard bolt |
| 4 |
W520515 |
Toe link outboard nut |
| 5 |
5B674 |
Toe link |
