Stabilizer Bar and Link: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.

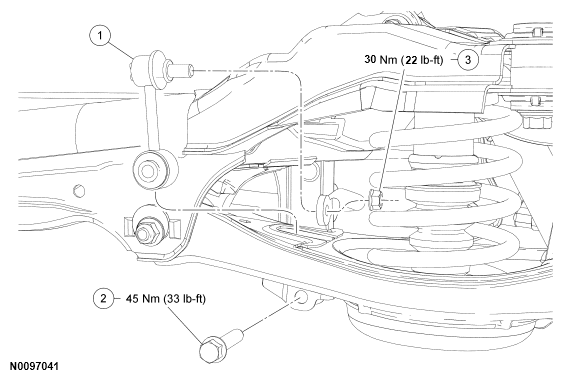

Fig 1: Exploded View Of Stabilizer Bar & Link With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5A486	Stabilizer bar link
2	W302134	Stabilizer bar link lower bolt
3	W302118	Stabilizer bar link upper nut

NOTE: FWD shown, AWD similar.

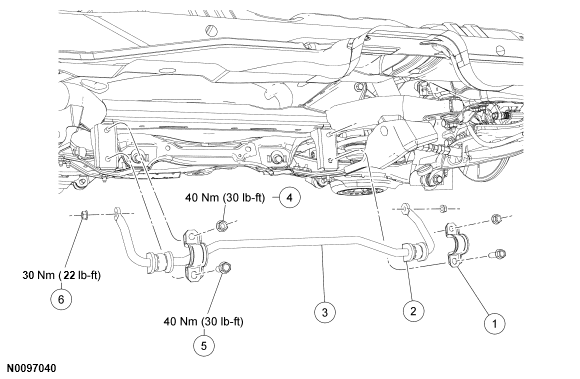

Fig 2: Exploded View Of Stabilizer Bar & Link With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5B498	Stabilizer bar bracket (2 required)
2	5493	Stabilizer bar bushing (2 required)
3	5A772	Stabilizer bar
4	W302118	Stabilizer bar bracket nut (2 required)
5	W302131	Stabilizer bar bracket bolt (2 required)
6	W302118	Stabilizer bar link upper nut (2 required)
