Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:
Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.

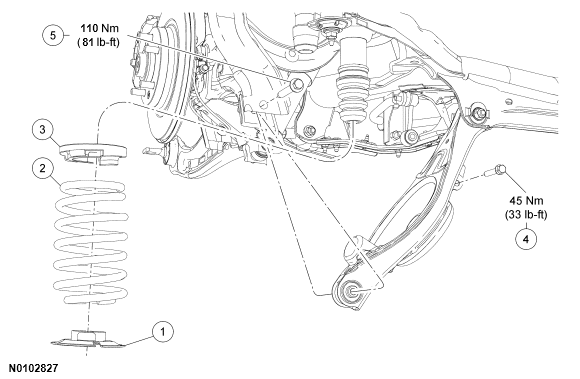

| Item | Part Number | Description |
|---|---|---|
| 1 | 5536A | Spring lower seat |
| 2 | 5560 | Spring |
| 3 | 5536B | Spring upper seat |
| 4 | W302134 | Stabilizer bar link lower bolt |
| 5 | W302125 | Lower arm outboard bolt |
