Shock Absorber: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

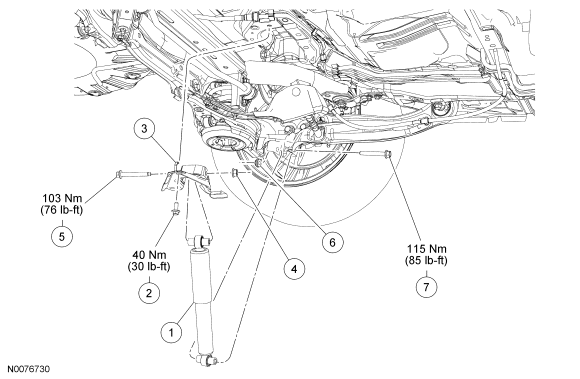

Fig 1: Exploded View Of Shock Absorber With Torque Specifications - Front Wheel Drive (FWD) Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | 18125 | Shock absorber |
| 2 | W302277 | Bracket bolt (3 required) |
| 3 | 18165 LH/ 18164 RH | Shock absorber bracket |
| 4 | W520515 | Shock absorber upper nut |
| 5 | W500748 | Shock absorber upper bolt |
| 6 | W302116 | Shock absorber lower flag nut |
| 7 | W704586 | Shock absorber lower bolt |

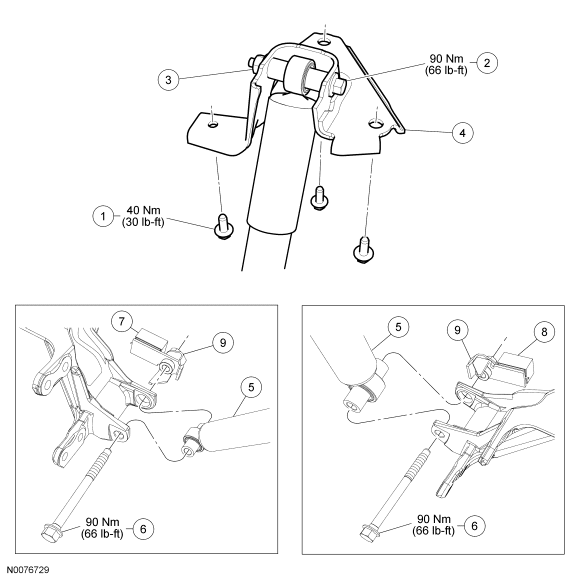

Fig 2: Exploded View Of Shock Absorber With Torque Specifications - All-Wheel Drive (AWD) MKZ Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W302277 | Bracket bolt (3 required) |
| 2 | W500748 | Shock absorber upper bolt |
| 3 | W520515 | Shock absorber upper nut |
| 4 | W704586 | Shock absorber lower bolt |
| 5 | 18125 | Shock absorber |
| 6 | 18199 | Shock absorber lower mount bushing |
| 7 | W302117 | Shock absorber lower flag nut |
| 8 | 18165 LH/ 18164 RH | Shock absorber bracket |

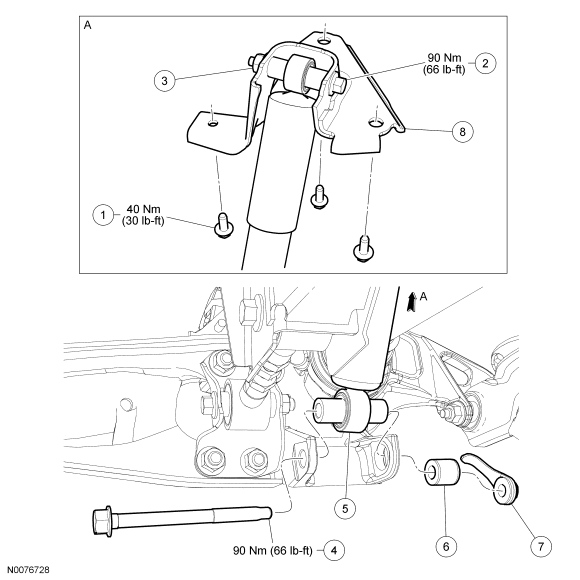

Fig 3: Exploded View Of Shock Absorber With Torque Specifications - All-Wheel Drive (AWD) Fusion/Milan Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W302277 | Bracket bolt (3 required) |
| 2 | W500748 | Shock absorber upper bolt |
| 3 | W520515 | Shock absorber upper nut |
| 4 | 18165 LH/ 18164 RH | Shock absorber upper bracket |
| 5 | 18125 | Shock absorber |
| 6 | W712880 | Shock absorber lower bolt |
| 7 | 5B695 | Shock absorber damper LH side |
| 8 | 5B695 | Shock absorber damper LH side |
| 9 | W712848 | Shock absorber lower flag nut (with 17 in wheel) |
| 9 | W302117 | Shock absorber lower flag nut (with 16 in wheel) |
