Upper Arm: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Steering Arm | 211-003 (T64P-3590-F) |

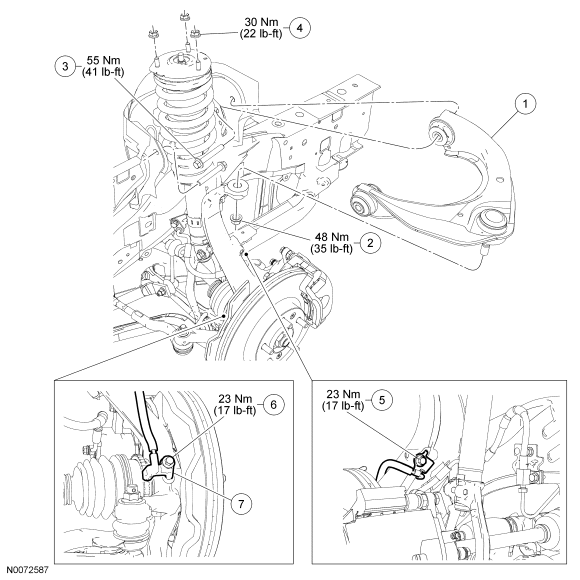

| Item | Part Number | Description |
|---|---|---|
| 1 | 3091 LH/ 3084 RH | Upper arm |
| 2 | 3C498 | Upper ball joint nut |
| 3 | W500525 | Upper arm-to-body bolt (2 required) |
| 4 | 5B800 | Shock absorber upper mount nut (3 required) |
| 5 | W500020 | Wheel speed sensor harness bolt |
| 6 | W500222 | Wheel speed sensor bolt |
| 7 | 2C204 RH/ 2C205 LH | Wheel speed sensor |
