Stabilizer Bar Bushing: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Remover, Tie-Rod End	211-105 (T85M-3395-A)

Fig 1: Exploded View Of Stabilizer Bar Bushing With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Catalytic converter-to-exhaust flexible pipe nuts (2 required)
2	W711918	Rear driveshaft-to-Power Transfer Unit (PTU) bolt (4 required)
3	5006930	Rear driveshaft assembly
4	5E212	Catalytic converter
5	3R827	Steering column shaft bolt
6	3C611B	Steering column shaft-to-dash seal
7	5801691	Lower steering column shaft joint cover nut (2 required)
8	3C611A	Lower steering column shaft joint cover

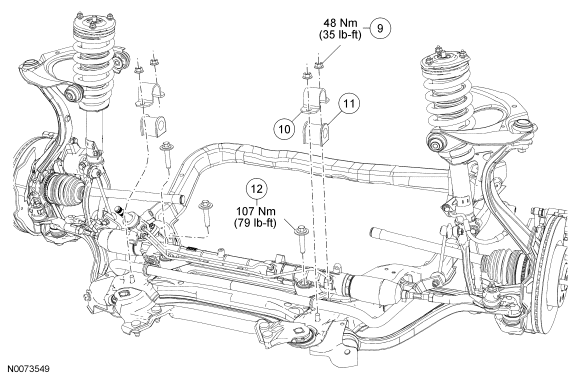

Fig 2: Exploded View Of Stabilizer Bar Bushing With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	W520414	Stabilizer bar bracket nut (4 required)
10	5486	Stabilizer bar bushing bracket (2 required)
11	5484	Stabilizer bar bushing (2 required)
12	3C497	Steering gear-to-subframe bolt (3 required)
