Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

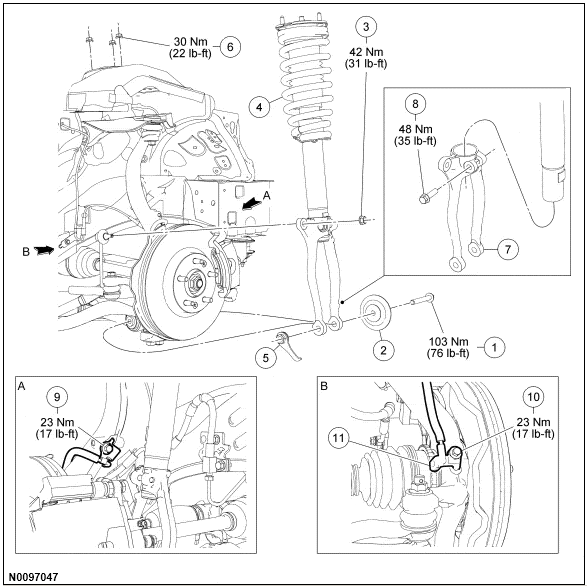

| Item | Part Number | Description |
|---|---|---|
| 1 | W500550 | Damper fork-to-lower arm bolt |
| 2 | 3C156 | Damper |
| 3 | 3C494 | Stabilizer bar link upper nut |
| 4 | - | Shock absorber and spring assembly |
| 5 | W302117 | Damper fork-to-lower arm flag nut |
| 6 | W302128 | Shock absorber upper mount nut (3 required) |
| 7 | 3462 | Damper fork |
| 8 | W302119 | Shock absorber-to-damper fork bolt |
| 9 | W500020 | Wheel speed sensor harness bolt |
| 10 | W500222 | Wheel speed sensor bolt |
| 11 | 2C204 RH/ 2C205 LH | Wheel speed sensor |
