Lower Arm - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 204-592 | 204-592/1 | |
| Separator, Ball Joint | 204-592 |

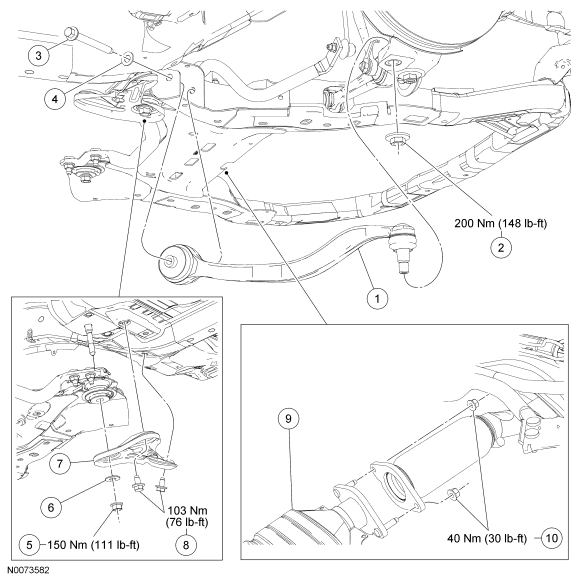

| Item | Part Number | Description |
|---|---|---|
| 1 | 3079 LH/ 3078 RH | Lower arm (rear) |
| 2 | 3C499 | Lower ball joint nut (rear) |
| 3 | W500752 | Rear lower arm-to-subframe bolt |
| 4 | 999581222 | Washer |
| 5 | W520416 | Subframe bracket-to-subframe nut (2 required) |
| 6 | 5A552 | Subframe bracket-to-subframe washer (2 required) |
| 7 | 3B155 LH/ 3B154 RH | Subframe bracket (2 required) |
| 8 | 3C496 | Subframe bracket-to-body bolts (4 required) |
| 9 | 5E212 | Catalytic converter |
| 10 | W705443 | Catalytic converter manifold-to-exhaust flexible pipe nuts (2 required) |
| Item | Part Number | Description |
|---|---|---|
| 11 | 3R827 | Steering column shaft bolt |
| 12 | 3C611B | Steering column shaft-to-dash seal |
| 13 | 5801691 | Lower steering column shaft joint cover nut (2 required) |
| 14 | 3C611A | Lower steering column shaft joint cover |
