Lower Arm - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 204-592 | 204-592/1 | |
| Separator, Ball Joint | 204-592 |

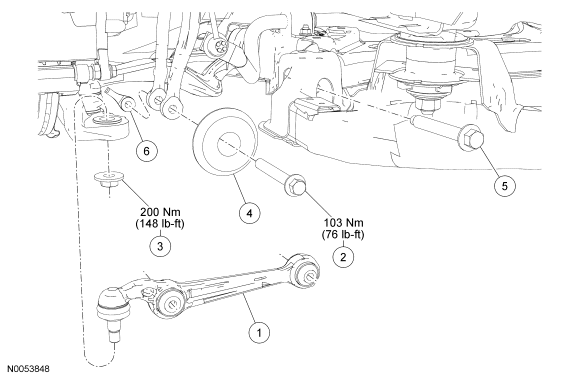

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A423 | Lower arm (front) |
| 2 | W500550 | Damper fork-to-lower arm bolt |
| 3 | 3C499 | Lower ball joint nut (front) |
| 4 | 3C156 | Damper |
| 5 | W712840 | Front lower arm-to-subframe bolt |
| 6 | 3C347 | Damper fork-to-lower arm flag nut |
